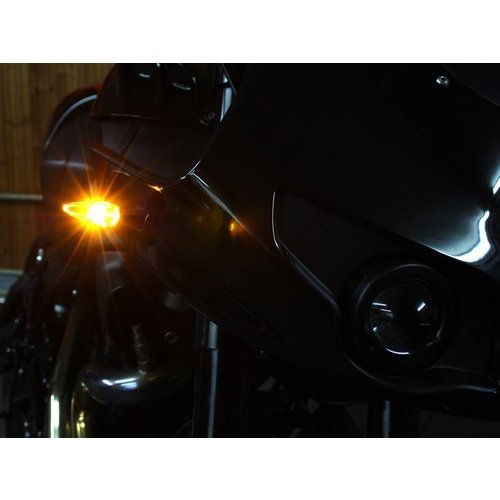

Cool as Ice! The M-Blaze Ice is the brand-new, bolt-on LED turn signal from Motogadget.
It is a completely new concept, has a fascinating design, and is the technically sophisticated implementation of a proven component.
Due to the transparent glass body made of scratch-resistant plastic, the M-Blaze Ice has a very neutral and subtle look. The small base is made from Billet aluminium and available with an anodized black or mirror polish surface. The turn signal light goes perfectly with all styles, finishes and all types of motorbikes.
Using the Motogadget TranzLight-Technology® (TLT, patent pending), the transparent turn signal body becomes the light source itself.
TranzLight-Technology® smartly uses the total internal reflection of light waves. With this progressive approach, turn signal casings not only have been miniaturized, but this also creates new lighting concepts directly through a crystal-like glass body. Only the precision of optical CAD calculations and state-of-the-art manufacturing processes provide this new design and its functionality.
The luminous flux required for the TranzLight technology is generated by the intensiLED® procedure developed by Motogadget. It consists of three important pillars:
specifically selected, phosphor-converted high output LED with the highest efficiency and 3W total output and service life of more than 50,000 hours
IC controlled constant power source with 330kHz pulses special collimator optics, that precisely bundles the diffuse emission light from the LED into the glass body
An important aspect of the TranzLight technology is the safety advantage due to enhanced visibility of the turn signal. The light is emitted at an almost 180° angle and thus visible from the front, side and rear of the motorbike.
The bolt-on turn signal is equipped with a flexible absorber and thus mechanically isolated from the fastening threads. This protects the assembly from vibrations and mechanical stress.
The M-Blaze Ice has an E-mark and is approved as a front and rear turn signal.
Parts delivered: one m-Blaze Ice turn signal with M8 thread, M8 nut, approx. 100 cm connector cable, installation instructions.
Please order two turn signals for a pair and four turn signals for front and rear use!
- absolutely unique, new design and operating principle (TranzLight-Technology)
- very neutral and subtle look due to the transparent glass body
- cutting edge Ultra HighPower LED-Technology (IntensiLED)
- IC controlled constant power source with 330kHz pulses
- bright light is emitted at an almost 180° angle and thus visible from the front, side and rear
Length w/o mounting thread: 65 mm
Total length w/ thread: 83 mm
Max. diameter: 20.5 mm
Cable length: about 100 cm
Weight: about 15 g
Installation: M8 threaded bolt
Power consumption: about 3 Watt
The turn signal can be installed like any other LED turn signal with load resistors or all of our load independent flasher relays (m-Flash, m-Wave, m-Stop, m-Relais+).
